DC MAXI JOLLY HV DALI, dimmable multi LED converter 50W - DALI / switch / 1-10V
TCI
69,94 EUR
excl. Shipping costs / incl. 20 % VAT
Recommended retail price: 88,46 EUR
You save 20,9 %
Shipping time: 6-7 weeks
Product no.: TCI-127409
EAN: 8010703327528
In stock: 50

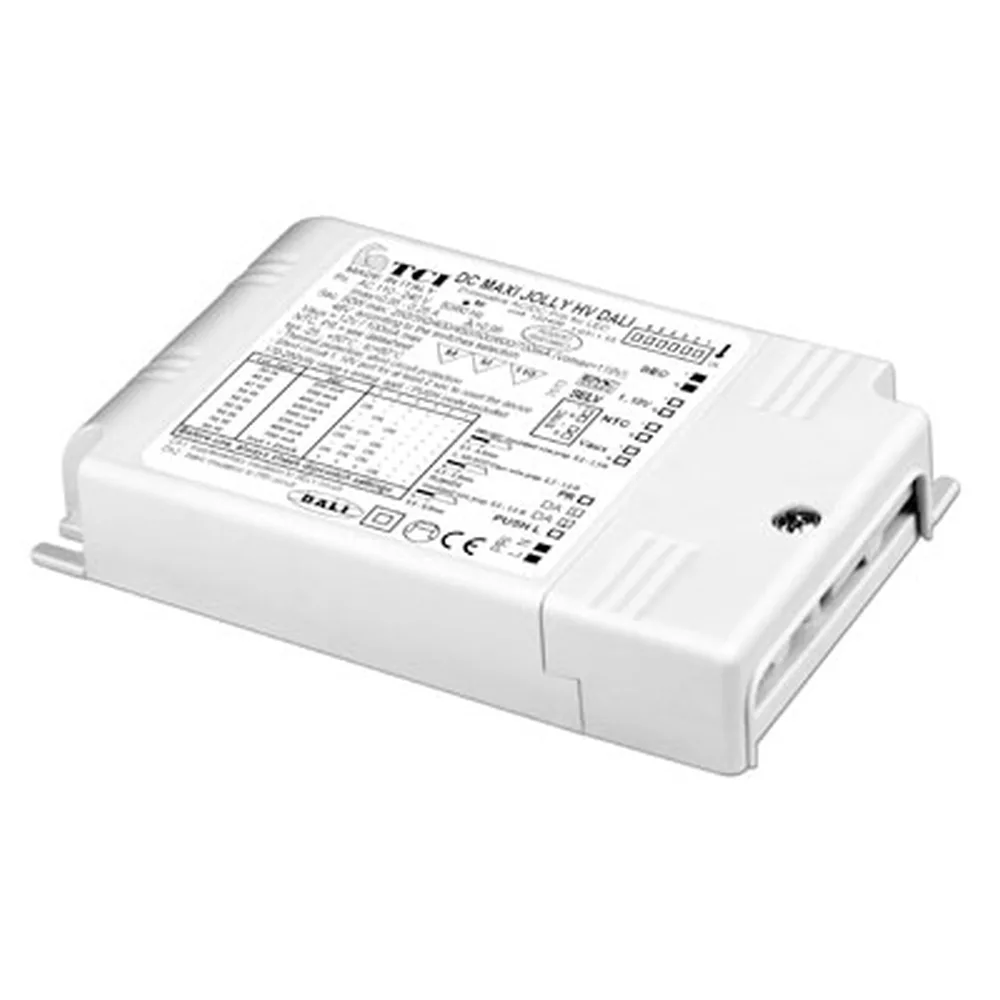

DC MAXI JOLLY HV DALI
The dimmable multi-LED converter with a power of 50W is suitable for operation with DALI, push-button and 1-10V. The item number is TCI-127409.
Technical Details
The operating voltage is 230V~, and the constant current is between 250-700mA. The size of the converter is L x W x H: 12.4 x 7.9 x 2.2 cm. It is available in white color and weighs 0.15kg.
Accessories and Area of Use
Accessories include a sync cable (not included). The converter is suitable for indoor use only and can be mounted on normal flammable surfaces.
More Information
The DC MAXI JOLLY HV DALI converter has various protection mechanisms, including overload protection, overvoltage protection, overheat protection, and short circuit protection. In case of a short circuit, the device is automatically protected.
Installation and Functions
The converter can be used for both recessed and surface mounting. It is flicker-free and offers the possibility to connect up to 10 devices together and control them via the first device (1 Master + 9 Slave). In addition, the constant current is selectable to allow for individual adjustment to the lighting.
surfaced mounting
With shortcut circuit protection
Adjustable constant current.
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA
